Nintendo 3193A

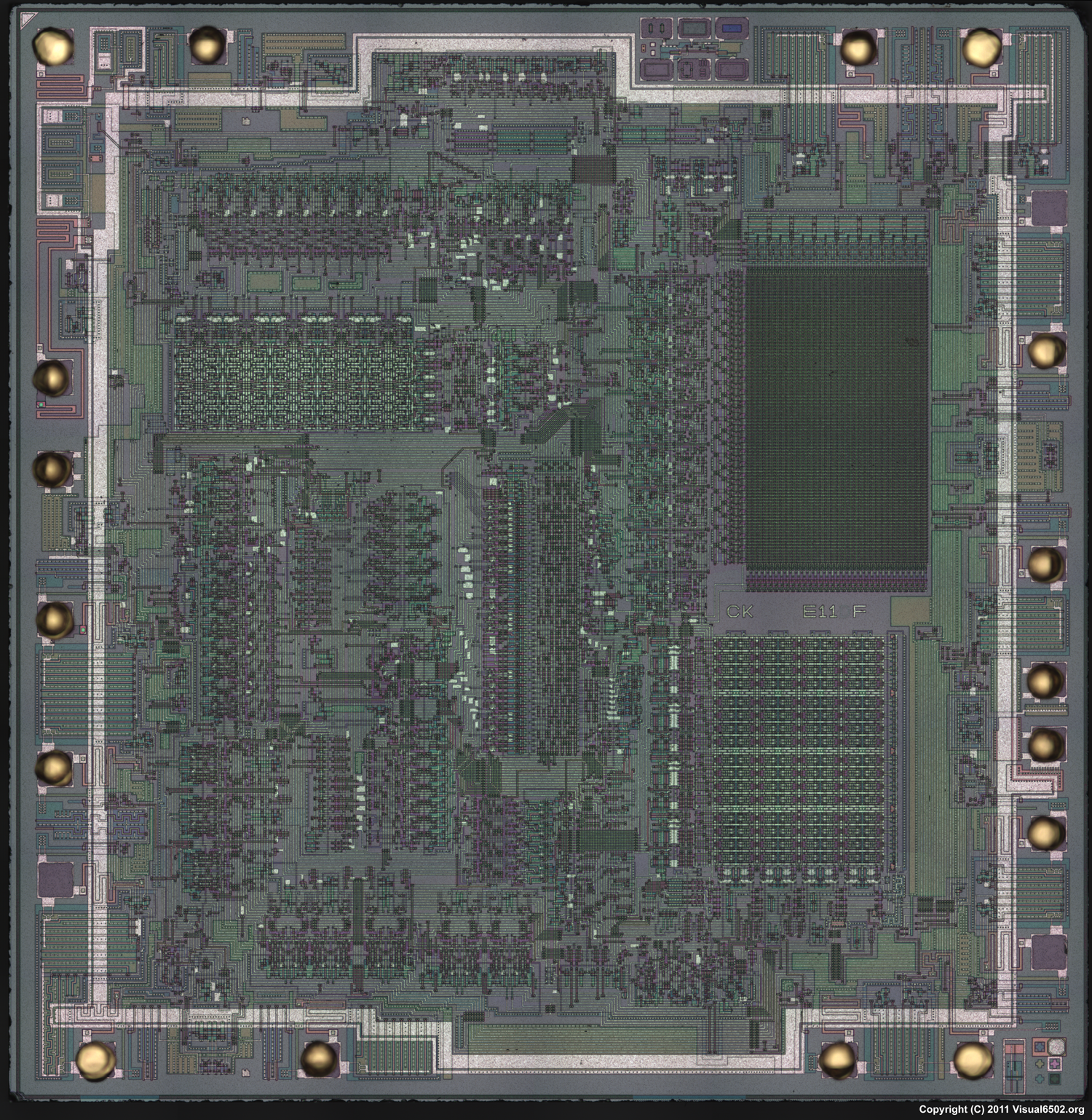

The 3193A is a support chip in the NES. The die is very small, and our images below are not reduced in size after stitching. We'll provide a die size measurement soon.

 4.6 mb   103 mb   430 kb

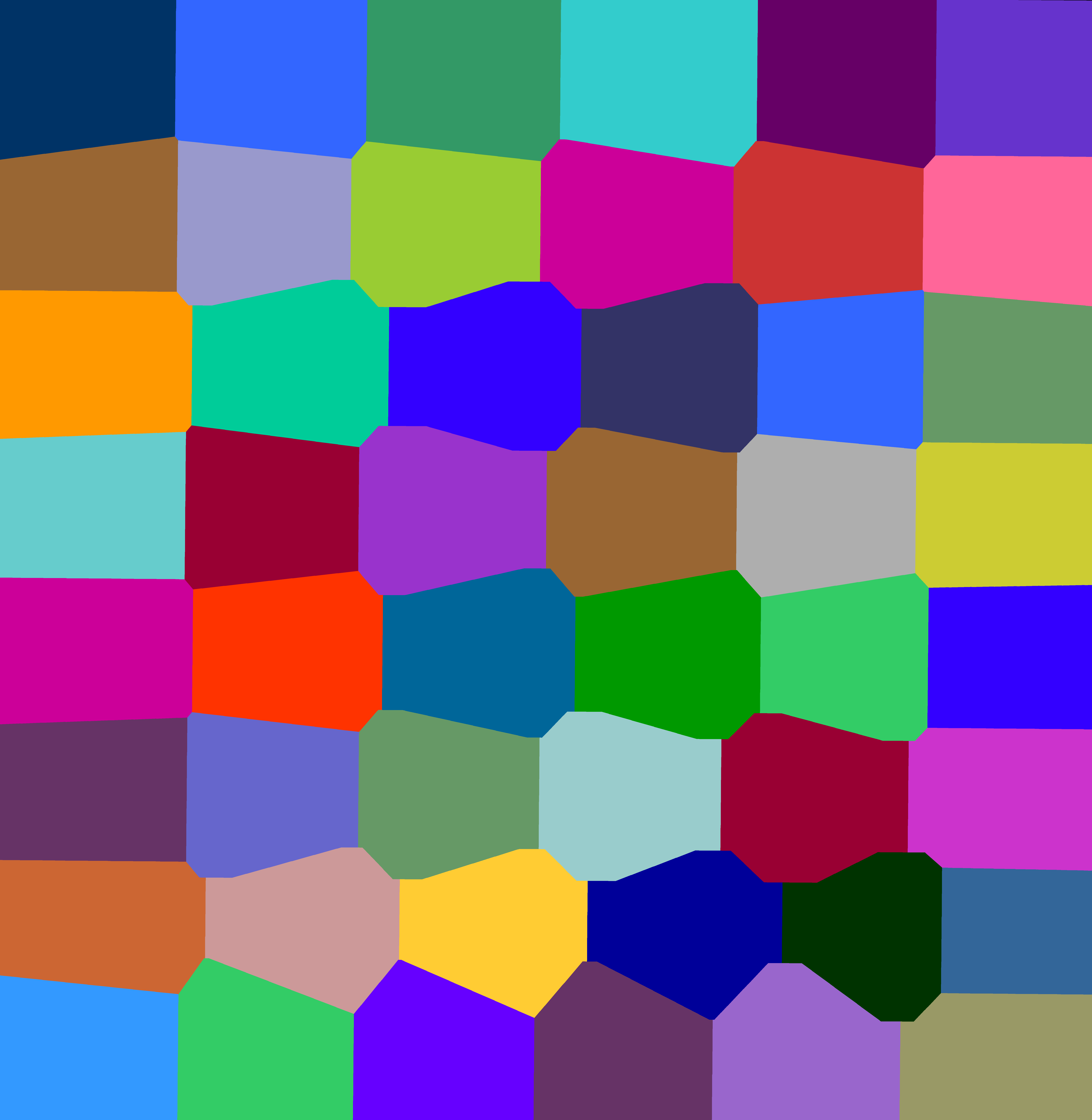

The die shot is stitched from many separate microscope shots taken with a Nikon LV150 using an LU Plan Fluor 20x objective. The images were corrected and stitched automatically by Christian Sattler in the UK, using Autopano-sift-C and custom code. The map of stitched images is shown on the right.
